MOC-123850 Tunnel Boring Machine Building Blocks

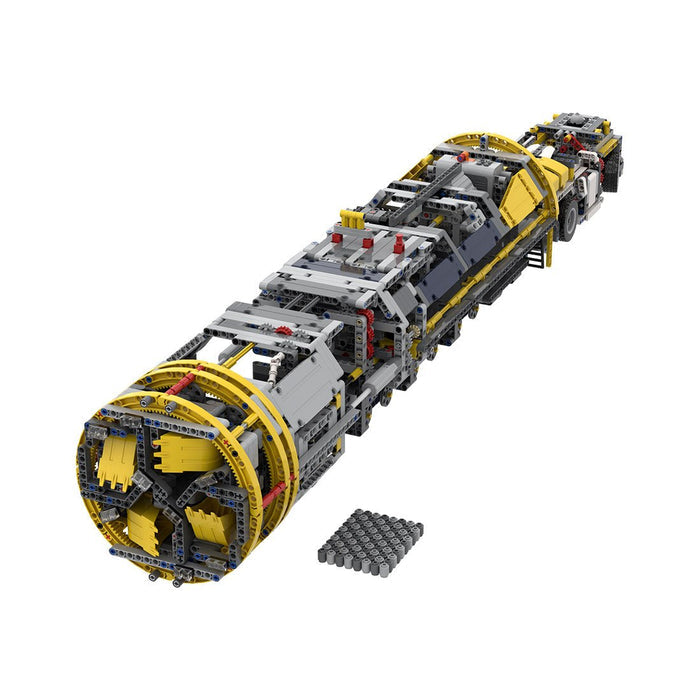

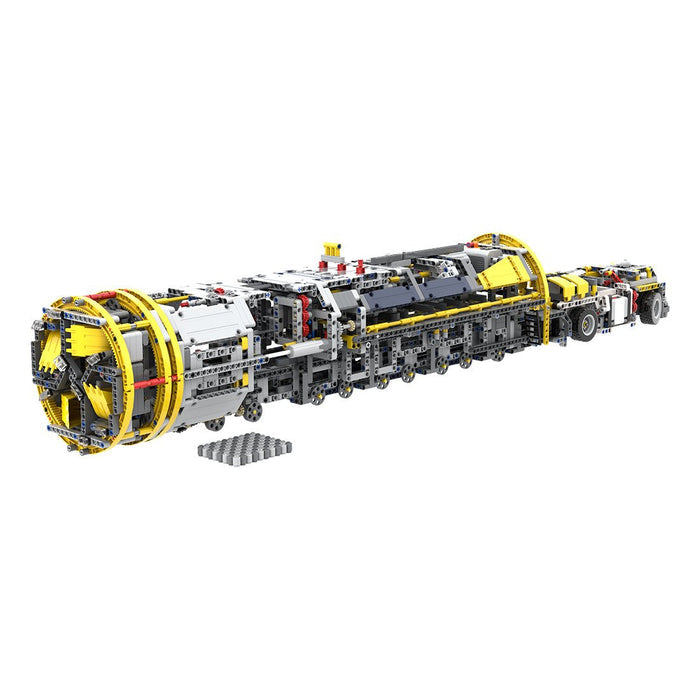

Take on a large-scale mechanical engineering project with the MOC-123850 Tunnel Boring Machine Building Blocks Set. Designed by TheThirdModel, this 3,331-piece dynamic model recreates the complex operating principles of a real tunnel boring machine, combining a rotating cutter head, continuous conveyor system, crawling mechanism, and a dedicated side-dumping haul truck.

Rather than relying on separate motors for every movement, the model uses a single-motor mechanical system to power its major functions through an intricate network of gears, drive components, and linear actuators. The result is a highly technical build that demonstrates how excavation, material transport, and machine advancement can work together as one coordinated system.

At approximately 108.5 cm / 42.7 in long with the dump truck positioned alongside the system, the completed model has an impressive industrial presence and is particularly suited to engineering collections, infrastructure displays, and advanced mechanical building enthusiasts.

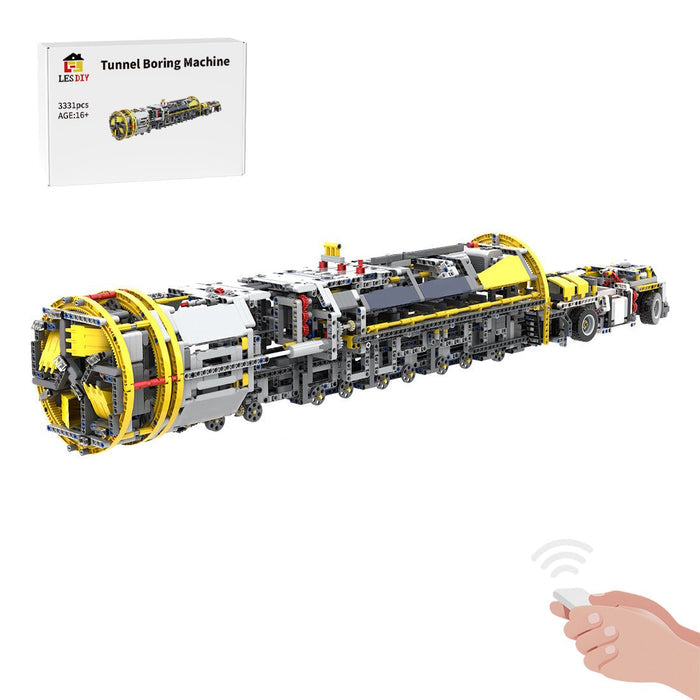

3,331-PIECE TUNNEL BORING MACHINE
Build a highly detailed interpretation of the heavy machinery used to excavate tunnels for transportation, utilities, and major infrastructure projects.

SINGLE-MOTOR MECHANICAL SYSTEM
One central motor system powers the model’s major mechanical functions through a complex gearbox and drivetrain.

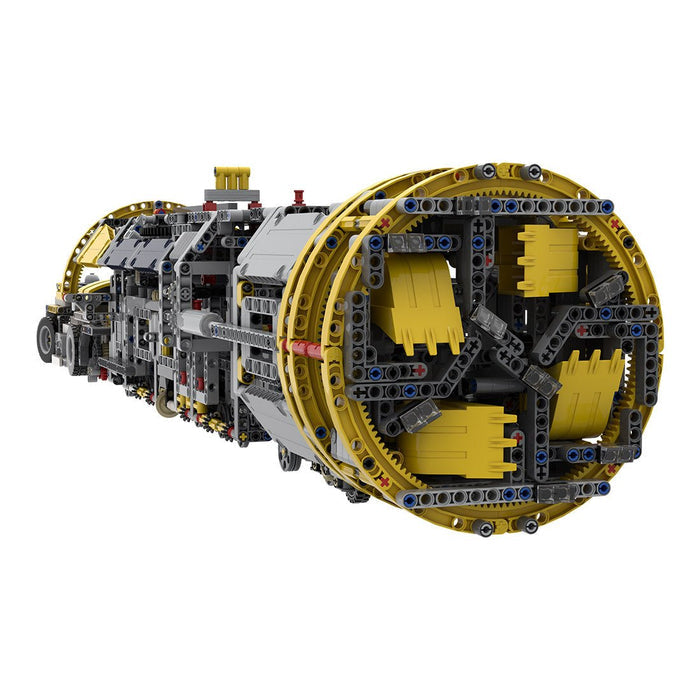

ROTATING CUTTER HEAD
The large front cutter head rotates to recreate the distinctive excavation mechanism of a real tunnel boring machine.

INCH-WORM CRAWLING ACTION
The machine advances using a slow, synchronized crawling motion that imitates the controlled forward progression of full-size tunnel boring equipment.

FULL-LENGTH CONVEYOR SYSTEM
A continuous conveyor runs through the machine to simulate the removal of excavated material from the cutter head toward the rear.

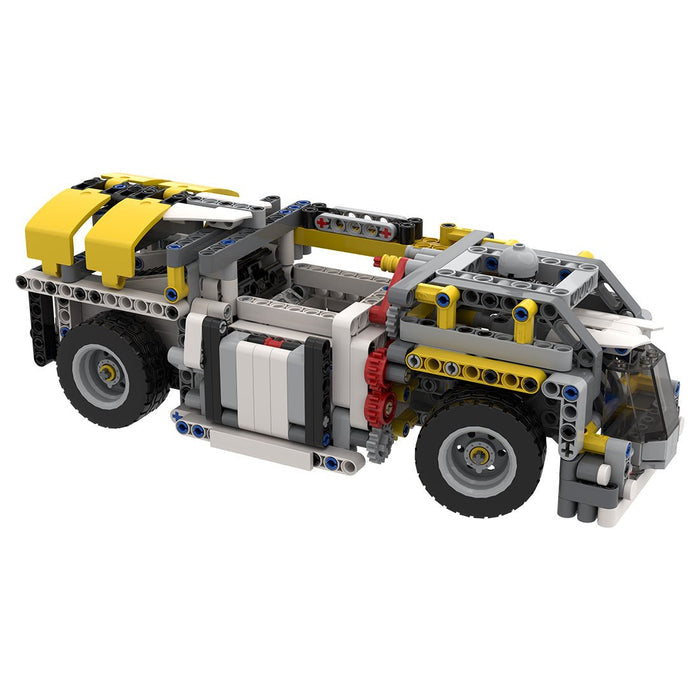

SIDE-DUMPING HAUL TRUCK

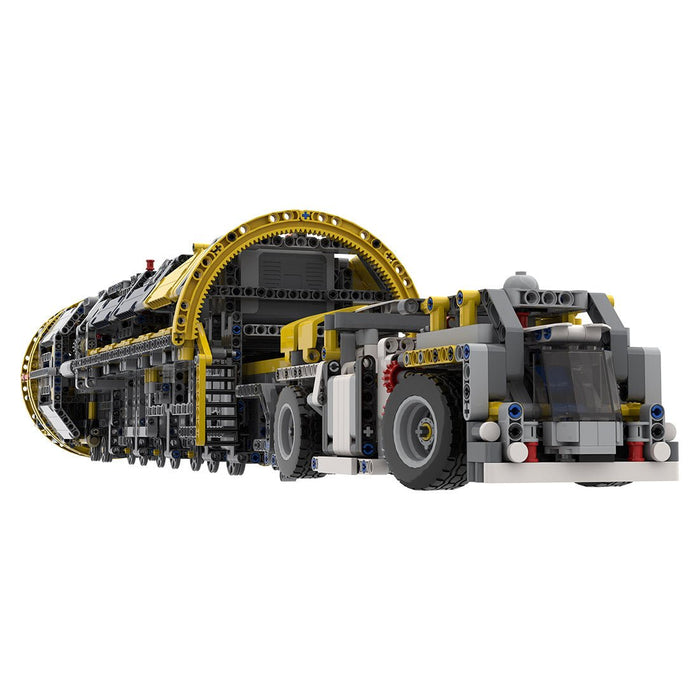

A specially designed dump truck works together with the TBM and includes its own conveyor system for receiving and unloading material.

SYNCHRONIZED DRIVETRAIN
The crawling wheels and linear actuators operate together through carefully calculated gearing, creating slow and controlled machine movement.

MULTI-FUNCTION GEARBOX
The internal transmission allows different mechanical functions to be operated in either direction, adding more interaction and engineering complexity to the build.

LARGE INDUSTRIAL DISPLAY MODEL
The full setup measures approximately 108.5 × 33.4 × 33.4 cm / 42.7 × 13.2 × 13.2 in, creating a substantial centerpiece for construction and infrastructure collections.

From the Designer

TheThirdModel created MOC-123850 around the goal of reproducing the major systems of a tunnel boring machine through a single interconnected mechanical drivetrain.

The design combines cutter-head rotation, material extraction, crawling movement, and truck loading into one functional engineering model. The gearbox also allows the cutter head and conveyor to reverse direction, which can help clear small obstructions in the mechanism.

Builder-Tested Mechanical Design

Feedback from builders highlights the smooth synchronization between the driven wheels and linear actuators, the large gear reduction used to achieve slow movement, and the functionality of the side-dumping truck. Builders have also noted that the model performs best on a smooth, level surface.

Best For

Mechanical engineering enthusiasts, construction machinery collectors, infrastructure fans, STEM displays, tunnel engineering enthusiasts, and advanced builders interested in gearboxes and functional machinery.

Important Note

This model is designed to simulate the mechanical operation of a tunnel boring machine. It should not be expected to excavate compact soil like full-size construction equipment; the designer has noted that actual digging performance is limited.

The designer also confirmed that the 108.5 cm overall length includes the side-dumping truck. The main TBM itself is approximately 82 cm long.

For the smoothest operation, use the model on a flat, even surface.
